Dark Sensitive LED Light

Dark activated LED light is a simple project which operates a LED when the light falling on the LDR goes below a set point.  The circuit is built using LM393 comparator, LDR as light sensor, preset (potentiometer) for sensitivity adjustment, transistor to drive the LED. The project can also be considered for use in energy saving application.

Features
  • Input – 12 V @ 1A
  • LED 12V 500mA Maximum (6W)
  • Onboard Preset for Level Adjust
  • Operation LED Indicator
  • On Board Power LED
  • Header Connector for Power Supply and LED
  • PCB dimensions 55.45MM X 12.70 MM

Dark-Activated-LED-Light-SCH

SCHEMATIC

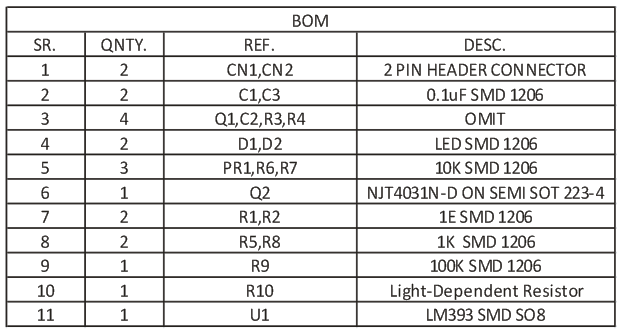

Dark-Activated-LED-Light-BOM

PARTS LIST

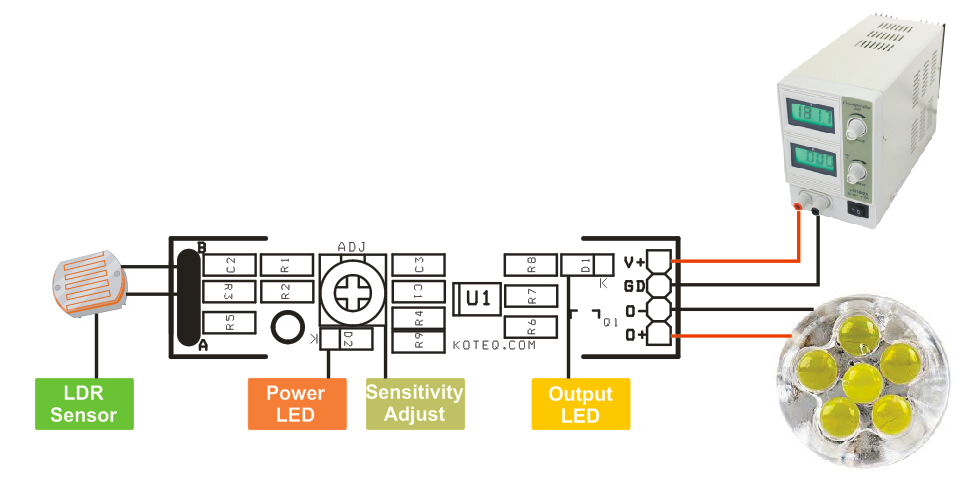

Dark-Activated-LED-Light-Wiring

CONNECTIONS

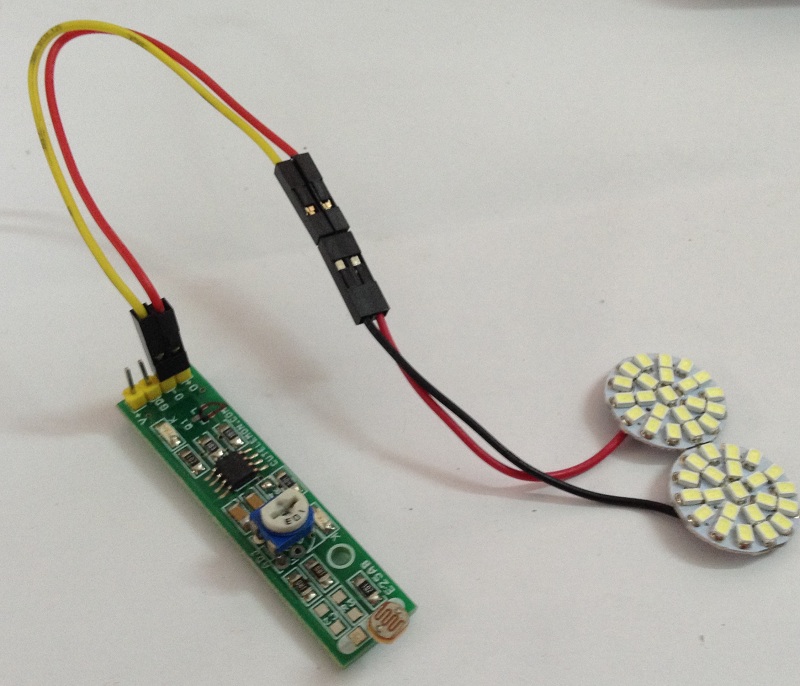

Dark-Activated-LED-Light-001

PROJECT PICTURE

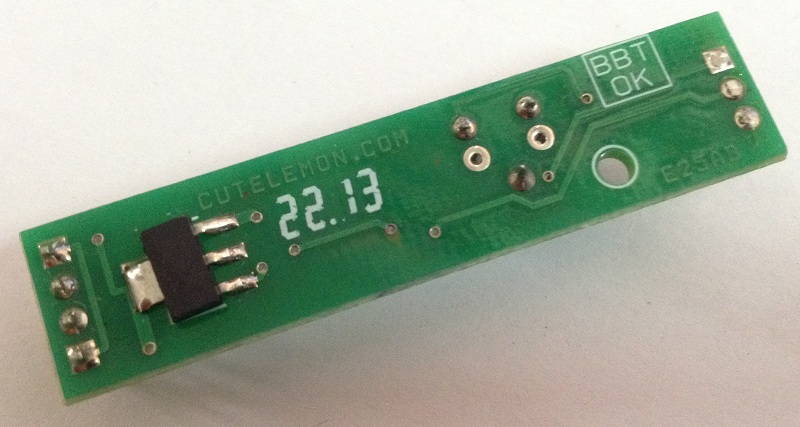

Dark-Activated-LED-Light-002

PROJECT PICTURE BACK SIDE
